Description

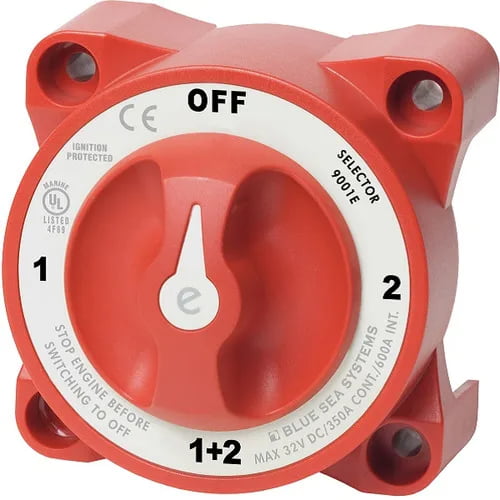

4 Position 32V 350A Luminous 2 Battery disconnect Switches Waterproof Isolator Disconnect Rotary switch for Marine Boat Truck RV
Specification:
Switch Type: Selector 4 Position
Switch position: 4
Switch Type: Rotary Switch
Maximum voltage: 32V DC
Continuous Rating: 350A
Terminal Size: 3/8'' - 16 (M10)
Mounting Holes: Accepts 1/4'' (M6) Screws
color: Red&Black
Material:
copper + plastic
Applicable:
Ignition protection safety installed on gas powered boats.
Installation Instructions:
Installation role:

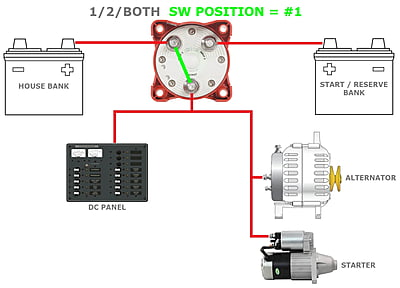

9002E Selector to switch isolated batteries to all loads or combine batteries to all loads.
The exquisite design with luminous function gives your switch a high-end and fashionable decorative style, adding unique colors, and can be used in harsh environments at night, beautiful, beautiful and eye-catching.
Includes AFD (Alternator Field Disconnect).
The make-before-break contact design allows switching between battery packs without interrupting power.
Ignition protection for safe installation on gasoline powered boats.
Enclosure design allows for surface or rear panel mounting
1* Switch, 100% Brand New High Quality.
After-sales instructions:
All dimensions are measured by hand and may vary slightly.
Due to differences in different monitors, the pictures may not reflect the actual color of the item.
