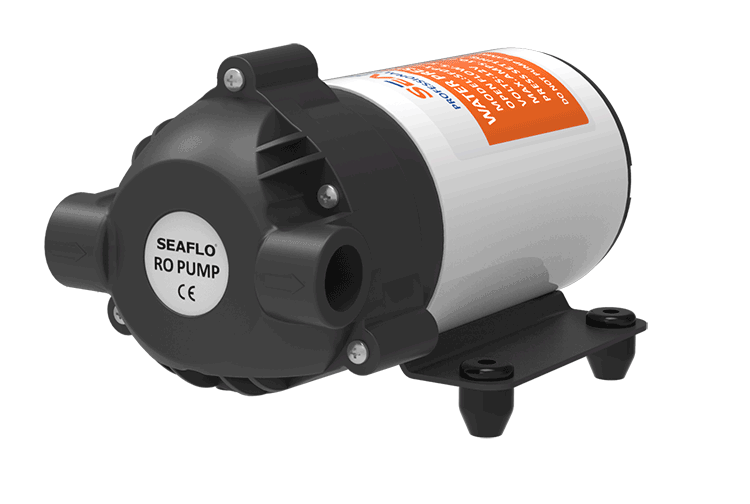

36 Series RO Diaphragm Pump DC/AC 5-7LPM 120PSI

The 36-Series is our continuous-duty on-demand positive displacement pump. It provides reliable performance in moderate water flow, high-pressure applications. This 3-chamber diaphragm pump provides up to 1.8 gallons per minute and is capable of self-priming up to 6 vertical feet, and can run dry without damage. They are easy to install, service and winterize.

TYPICAL APPLICATIONS

Marine, RV, Agricultural Spraying, General Industrial, Filtration, Beverage Processing, Solar Water System, etc.

PUMP
Type	3 Chamber positive displacement diaphragm pump, self priming, capable of being run dry
Control Type	By Pass Contral
Max Recommended Temperature	60° C（140° F）
Priming Capabilities	6 feet (1.8 m) suction lift
Re-start Pressure	Shut-off Pressure 120 PSI : 98 PSI ± 5 PSI (± 0.3 bar)
Inlet/Outlet Ports	3/8"-18 FNPT
Weight	5.0 lbs (2.2 kg)

MOTOR
Leads	16 AWG, 8" (20 cm) long with 2-Pin connector / Leads
Duty Cycle	Continuous
Max.Amp Draw	12.0 A
Fuse	18.0 A

STANDARD PUMP CONFIGURATIONS

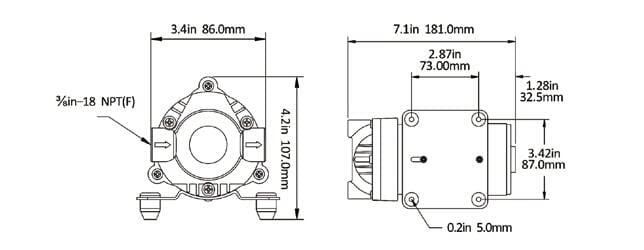

DIMENSIONS

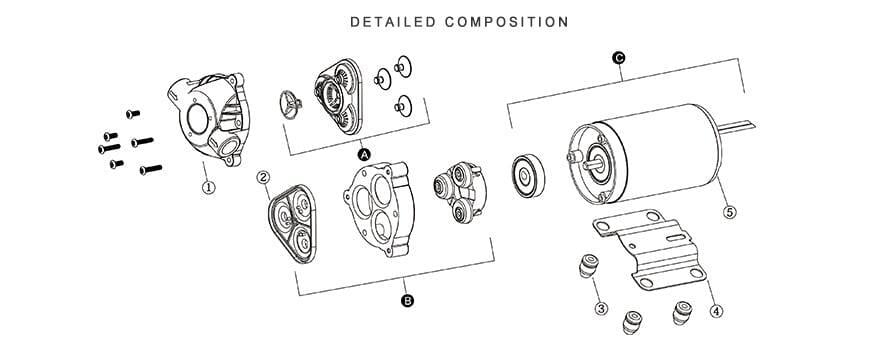

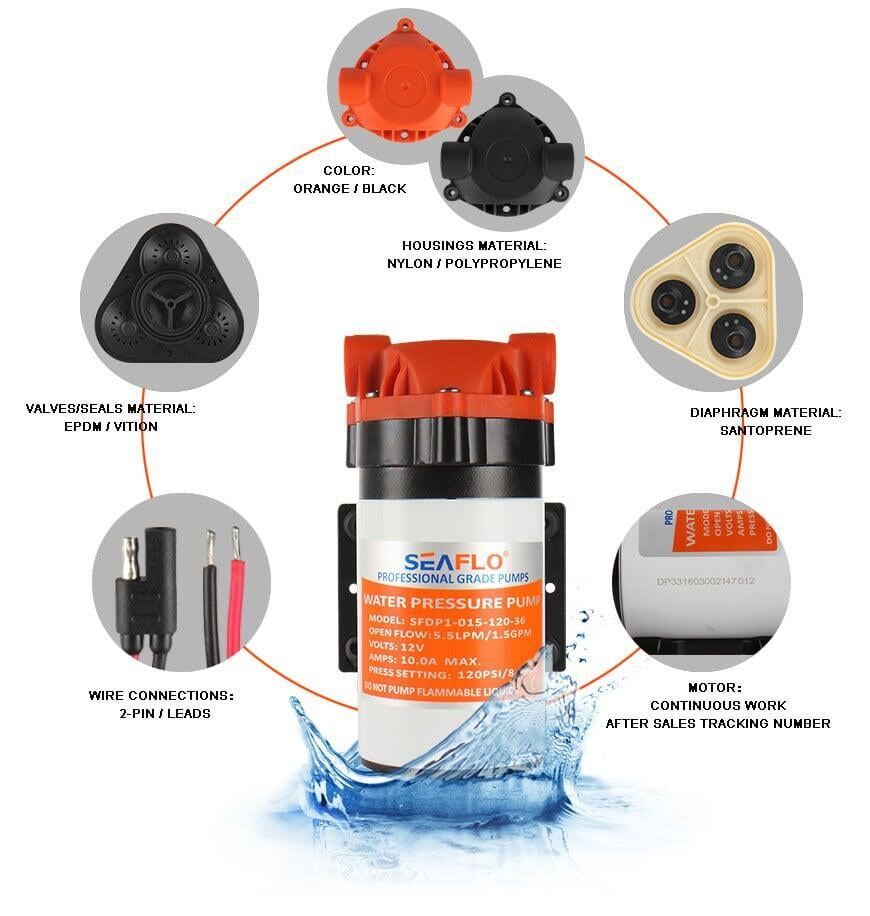

PRODUCT DETAILS
