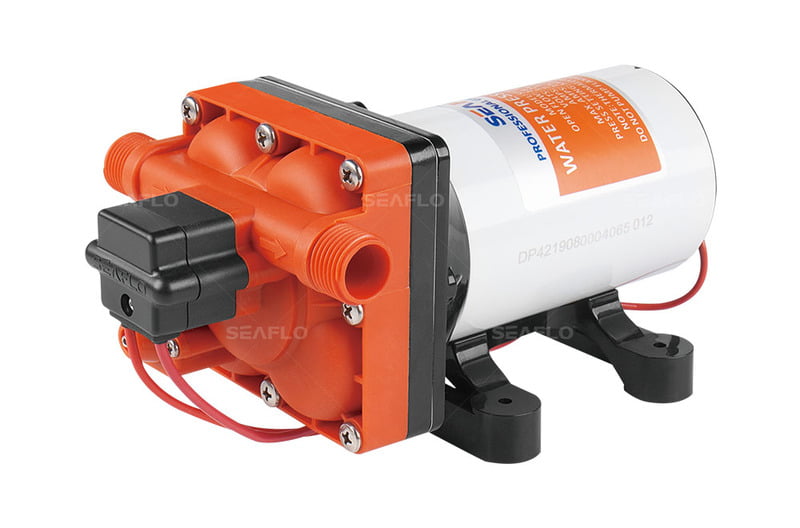

SEAFLO 42 Series Diaphragm Pump 12V/ 55psi/3.9bar
Non-returnable
BHD35.000
Out of stock
Meet our newest addition to our diaphragm pumps: the 42 series. It retains the raw power and pressure of its predecessors, but also can adapt to situations where huge flow is not needed. Compact but capable, it is a great fit for tight spaces. It also may be configured with different inlet types, each with their own unique fittings, to be sure that it fits any application you can find.
Product Details
STANDARD PUMP CONFIGURATIONS

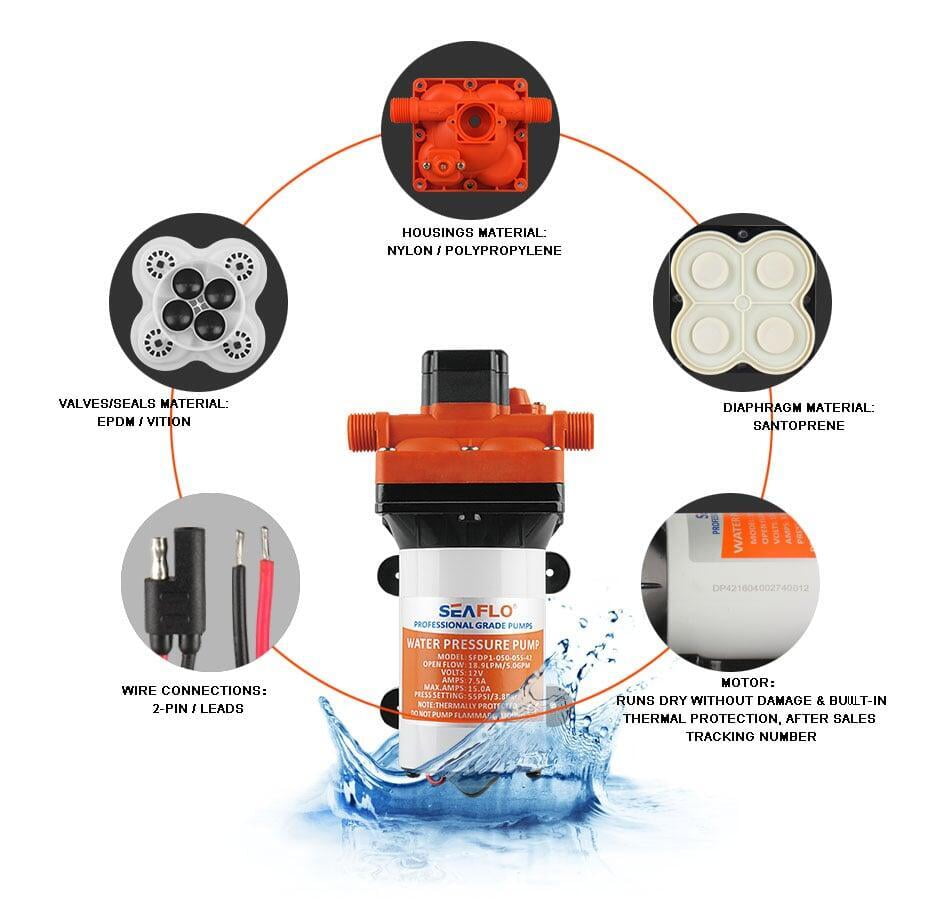

Model | Voltage | Open Flow (GPM/LPM) | Control Type | Max Draw | Shut-off Pressure (PSI/BAR) | Valves | Diaphragm | Ports | Wire Connections |
SFDP1-050-055-42 | 12V | 5.0 / 18.9 | switch & By pass | 15.00 A | 55 / 3.8 | EPDM | Santoprene | 1/2"-14 MNPT | 2-Pin/Leads |
