Tags:
Voltage
Flow rate
BHD40.000 - BHD40.500
Product Details
Product Details
Product Details

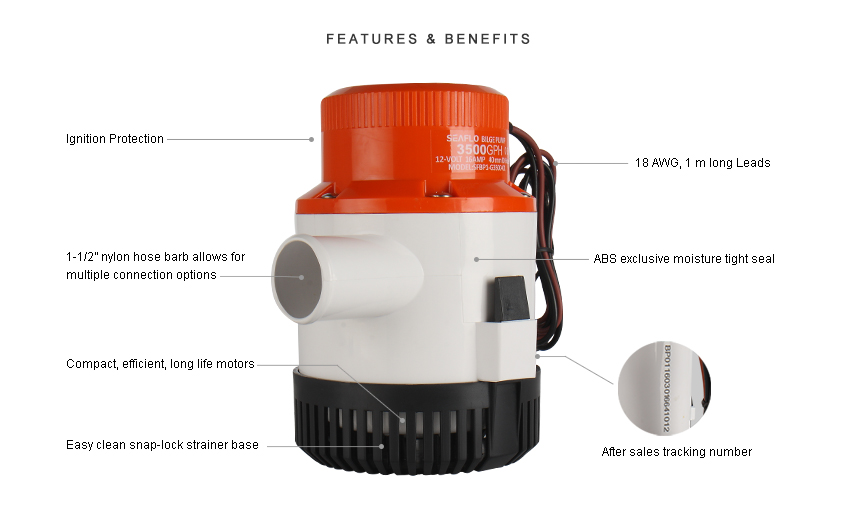

MORE FEATURES & BENEFITS
• CE, RoHS, ISO 8846, ISO 8849 standards
Traditional operation by switch or float switch
Pump and switch are stand alone products
Entirely Submersible
Snap-off strainer base for easy maintenance
Sealed efficient, long life motors, quiet operation
Anti-Airlock protection
Exclusive moisture tight seals
Marine grade blocked wiring
18 AWG, 1 m long leads
2 Year Warranty
STANDARD PUMP CONFIGURATIONS
| Model | Flow Rate | Voltage | Current | Max Draw | Wire Lead |

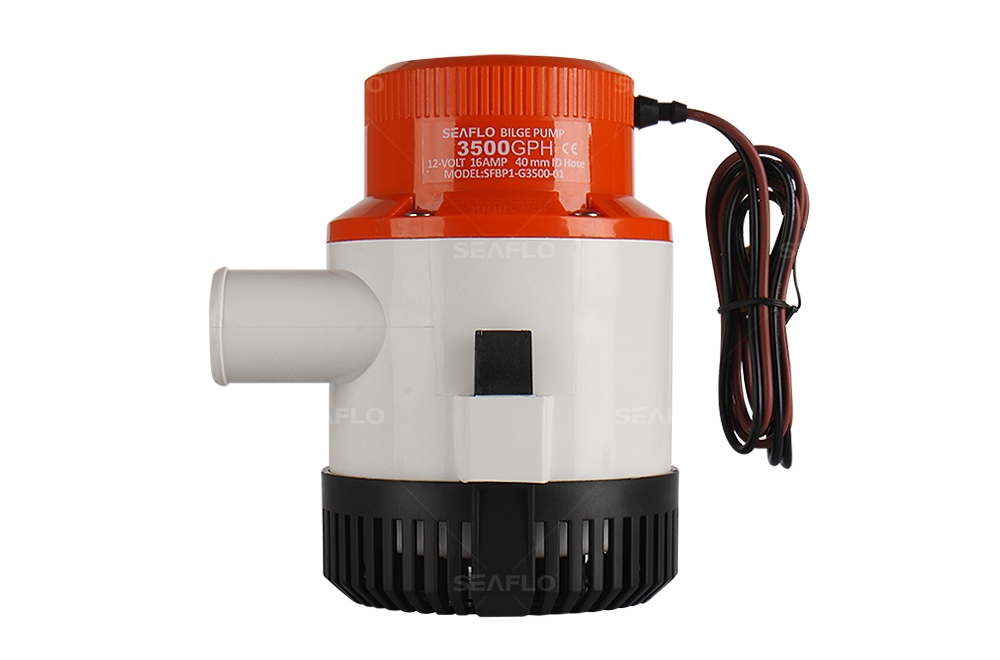

| SFBP1-G3500-01 | 3500 GPH | 12 V | 16.0 A | 25.0 A | 3' (1 m) |
| SFBP2-G3500-01 | 3500 GPH | 24 V | 8.0 A | 12.5 A | 3' (1 m) |

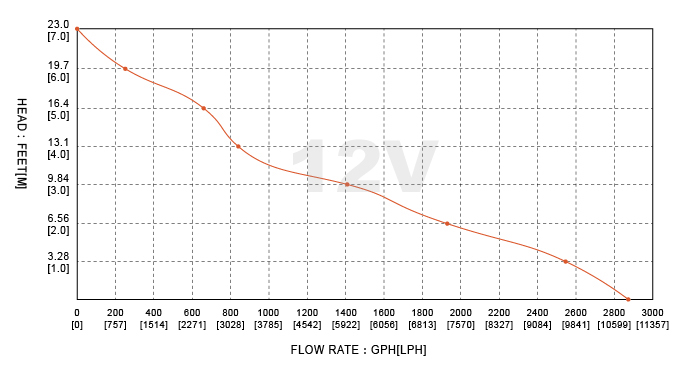

12V | |||
Current(A) | Flow | Head(M) | |
GPH | LPH | ||
19.7 | 2872 | 10868 | 0 |
20.4 | 2556 | 9672 | 1 |
21.1 | 1933 | 7315 | 2 |
21.9 | 1406 | 5321 | 3 |
22.8 | 844 | 3194 | 4 |
23.6 | 631 | 2388 | 5 |
24.4 | 255 | 965 | 6 |
25 | 0 | 0 | 7 |
