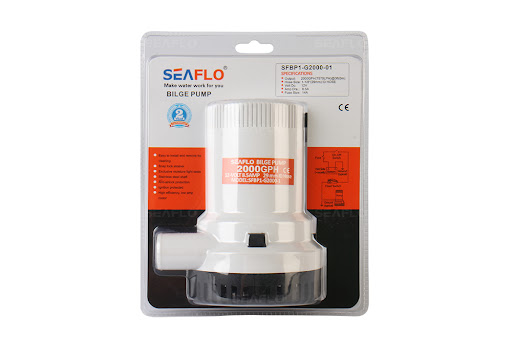

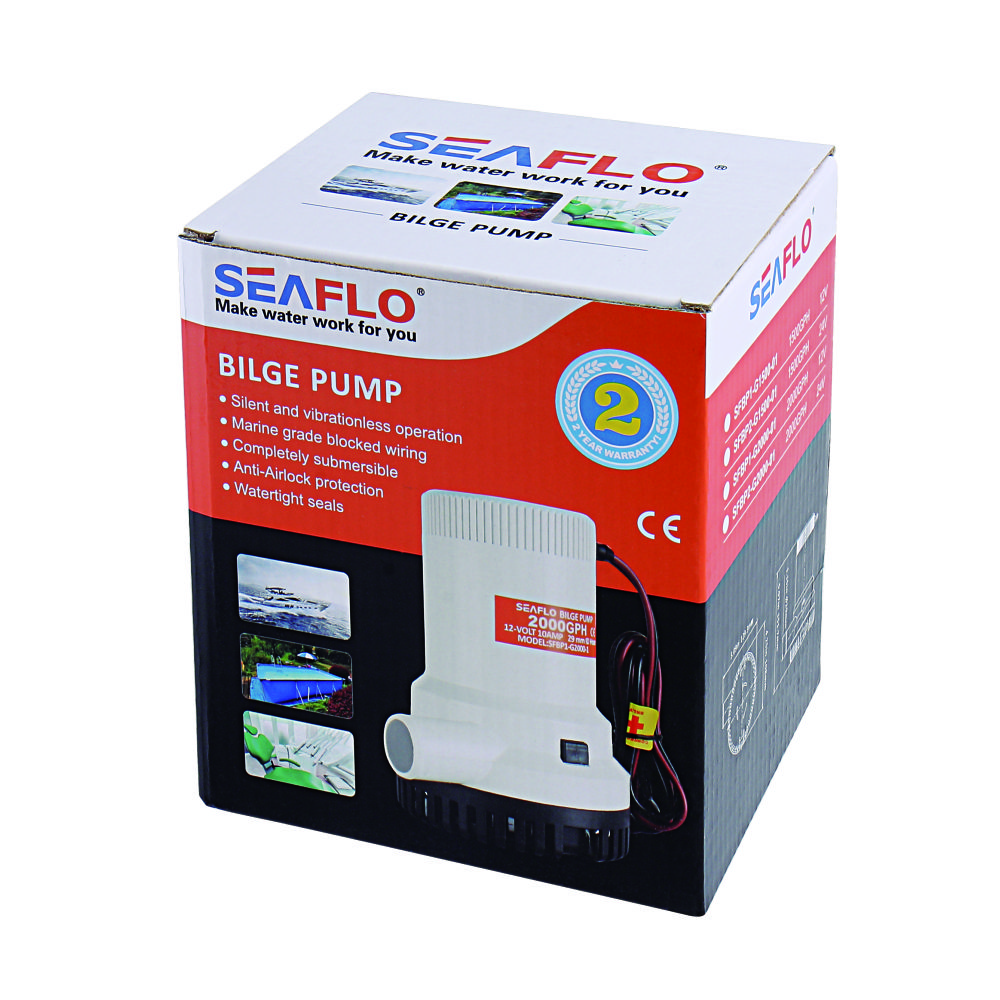

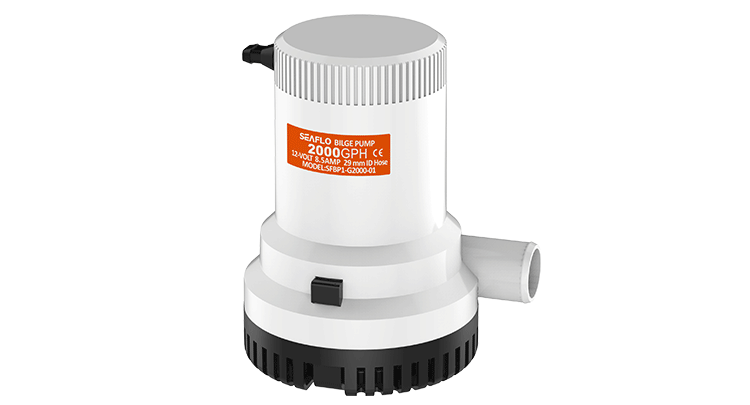

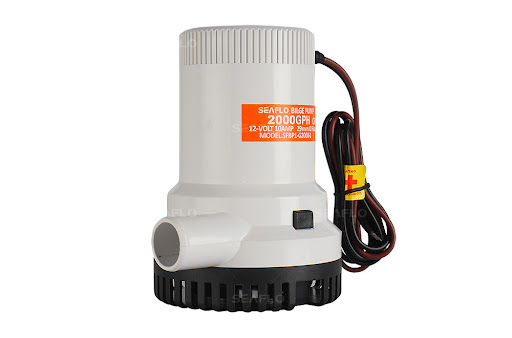

01 Series 2000GPH Seaflo Bilge Pump
Non-returnable
BHD20.710
Tags:
Product Details

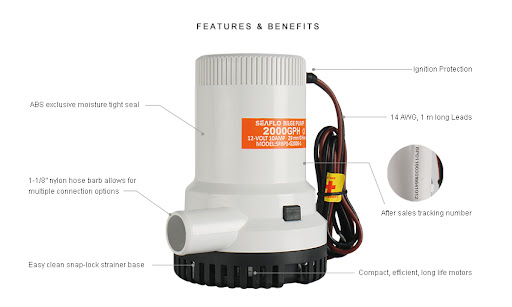

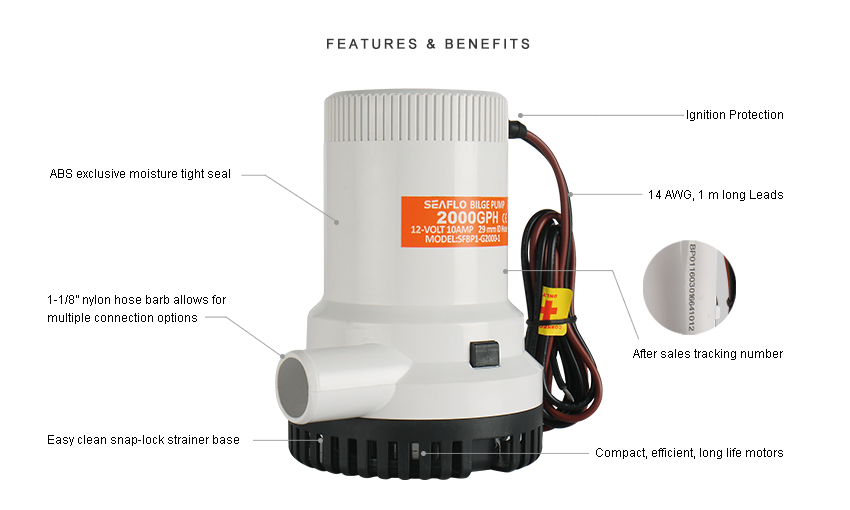

MORE FEATURES & BENEFITS
• CE, RoHS, ISO 8846, ISO 8849 standards
• Traditional operation by switch or float switch
• Entirely Submersible
• Run dry capable for workloads
• Stainless steel shaft
• Snap-off strainer base for easy maintenance
• Pump and switch are stand alone products
• Sealed efficient, long life motors, quiet operation
• Anti-Airlock protection
• Exclusive moisture tight seals
• Marine grade blocked wiring
• 2 Year Warranty
STANDARD PUMP CONFIGURATIONS
| Model | Flow Rate | Voltage | Current | Max Draw | Wire Lead |
| SFBP1-G2000-01 | 2000 GPH | 12 V | 8.5 A | 14.0 A | 1m /3.0' |
| SFBP2-G2000-01 | 2000 GPH | 24 V | 5.0 A | 8.1 A | 1m /3.0' |

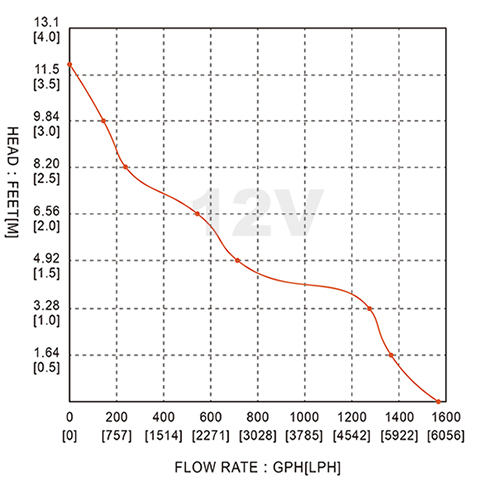

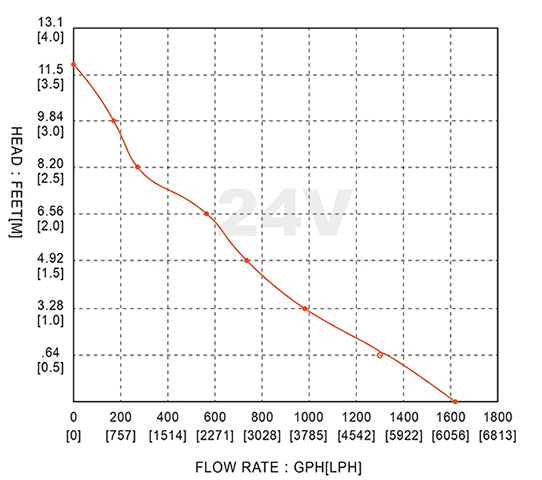

12V | 24V | ||||||
Current(A) | Flow | Head(M) | Current(A) | Flow | Head(M) | ||
GPH | LPH | GPH | LPH | ||||
| 6.9 | 1576 | 5964 | 0 | 3.68 | 1626 | 6153 | 0 |
| 7.49 | 1288 | 4874 | 0.5 | 4.29 | 1305 | 4938 | 0.5 |
| 8.83 | 945 | 3576 | 1 | 5.06 | 988 | 3739 | 1 |
| 10.25 | 711 | 2691 | 1.5 | 5.74 | 742 | 2808 | 1.5 |
| 11.3 | 538 | 2036 | 2 | 6.26 | 569 | 2153 | 2 |
| 12.18 | 238 | 901 | 2.5 | 6.83 | 264 | 999 | 2.5 |
| 12.94 | 155 | 538 | 3 | 7 | 188 | 711 | 3 |
| 14 | 0 | 0 | 3.6 | 8.1 | 0 | 0 | 3.6 |
