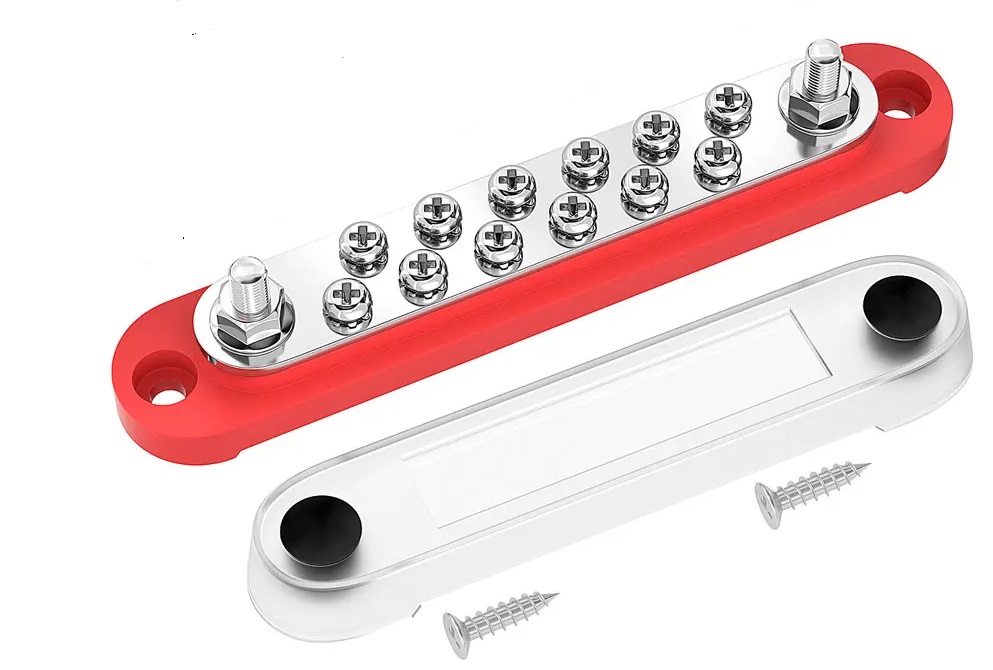

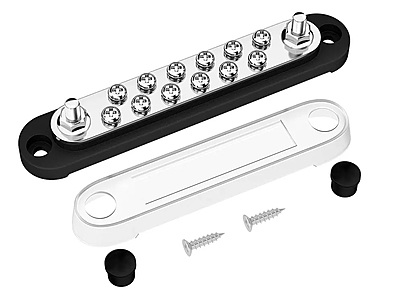

* 【Product Name】- 12V power distribution block, these busbars will come in pairs, includes one positive bus bar (red) and one ground bus bar (black).

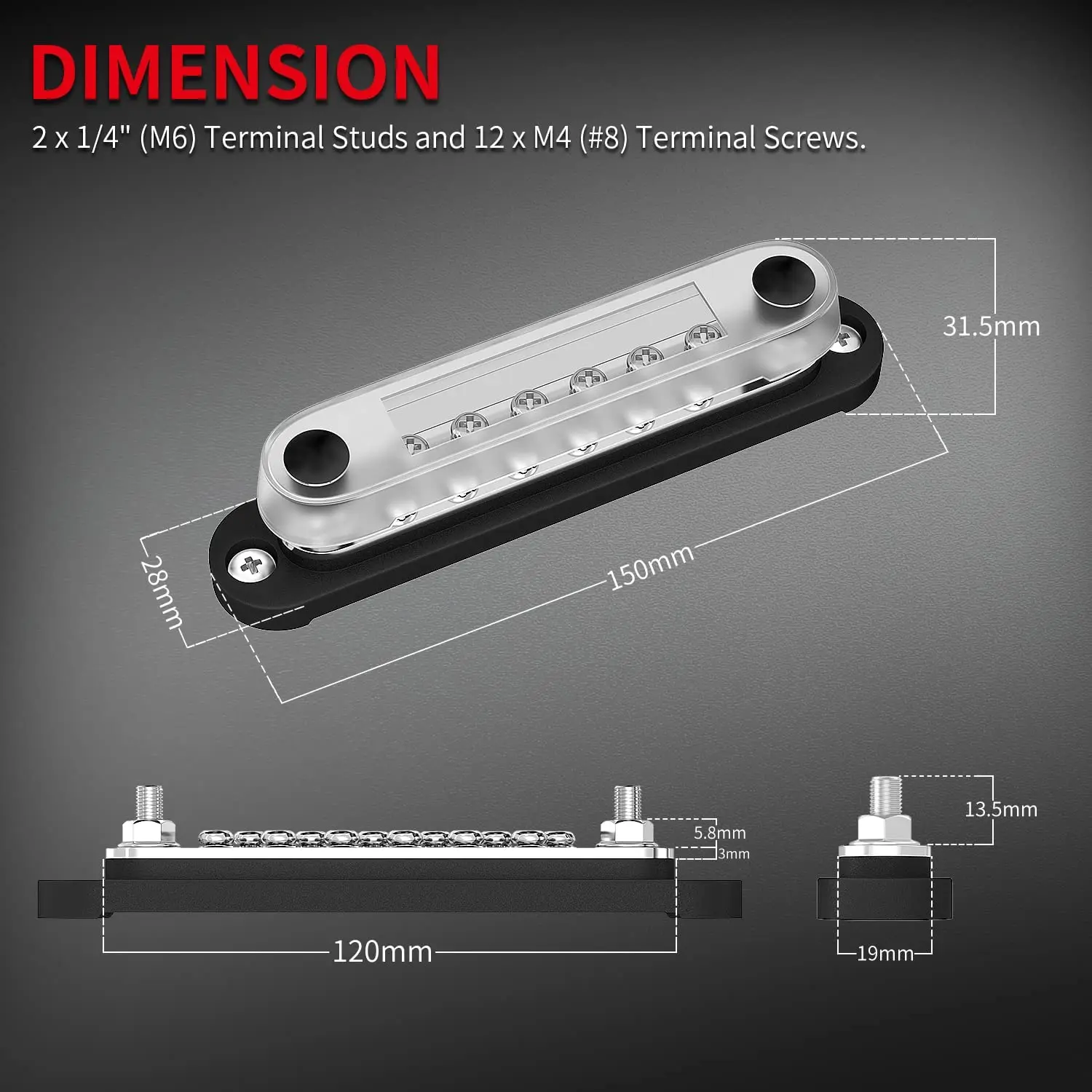

* 【Terminals & Rating】- Each battery bus bar terminal block includes - 2 x M6 (1/4")terminal studs, 12 x M4 (#8) terminal screws. Can handle voltage @ Max 300V AC, 48V DC, and continous amperage @ Max 130A AC, 150A DC.
* 【Round Corner Base】 - The 12v bus bar is unique round corner base design, which makes the battery terminal block unique and special, looks more extraordinary compared with other busbars.
* 【More Open Area Design Cover】 - The cover of this power bus bar will allow 180° wire lug installation and can meet variety kinds of installat methods of end terminals.

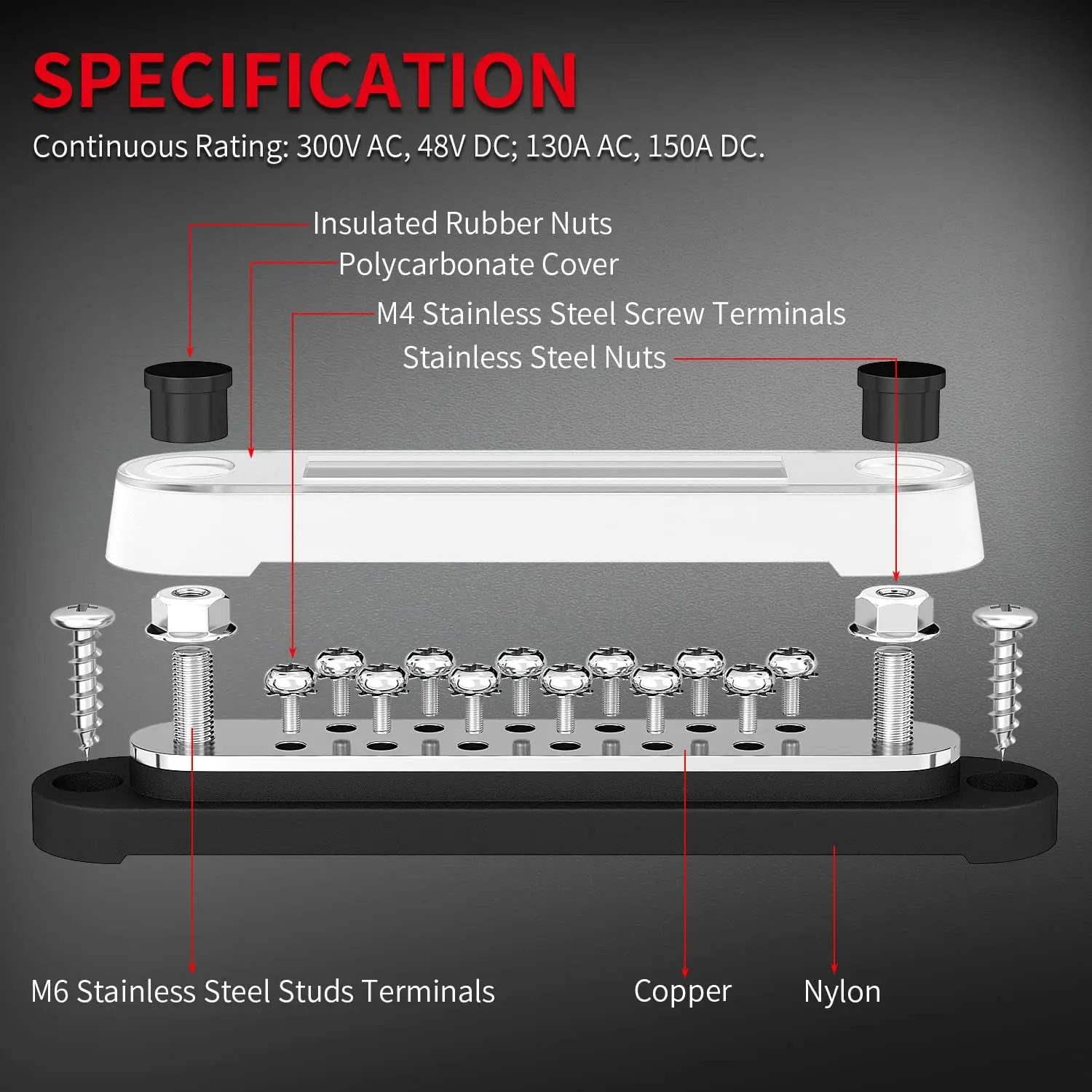

* 【Application】 - This marine power distribution block uses copper plates and stainless steel terminals as conductors, which enables the junction block 12v to work in extreme environment, suitable for automotive, car, marine, boat, etc.
* 【Terminals & Rating】- Each battery bus bar terminal block includes - 2 x M6 (1/4")terminal studs, 12 x M4 (#8) terminal screws. Can handle voltage @ Max 300V AC, 48V DC, and continous amperage @ Max 130A AC, 150A DC.
* 【Round Corner Base】 - The 12v bus bar is unique round corner base design, which makes the battery terminal block unique and special, looks more extraordinary compared with other busbars.
* 【More Open Area Design Cover】 - The cover of this power bus bar will allow 180° wire lug installation and can meet variety kinds of installat methods of end terminals.
* 【Application】 - This marine power distribution block uses copper plates and stainless steel terminals as conductors, which enables the junction block 12v to work in extreme environment, suitable for automotive, car, marine, boat, etc.
Package Include:
All YUJIE product With 12 months warranty.
Free parts will be sent during guarantee period!
Free parts will be sent during guarantee period!
Details Images
