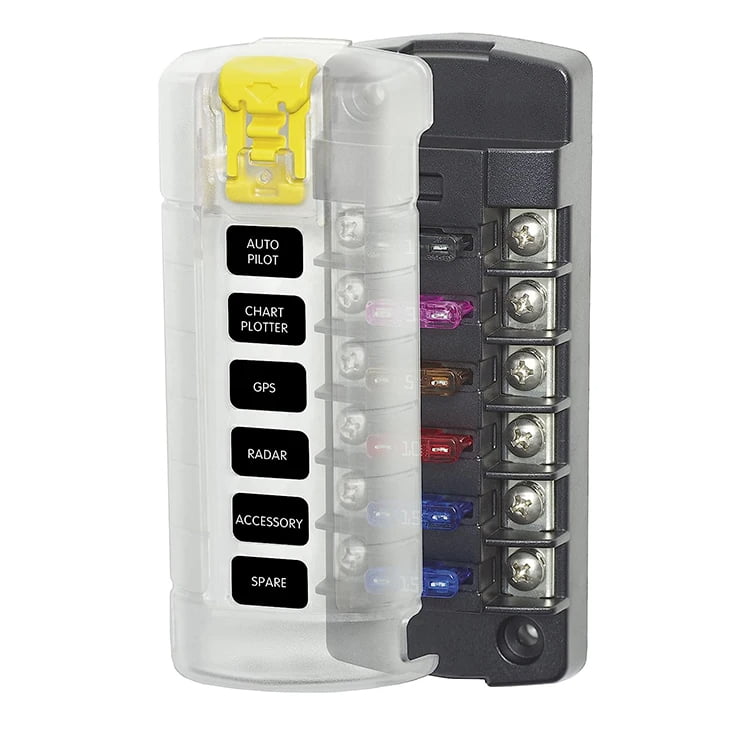

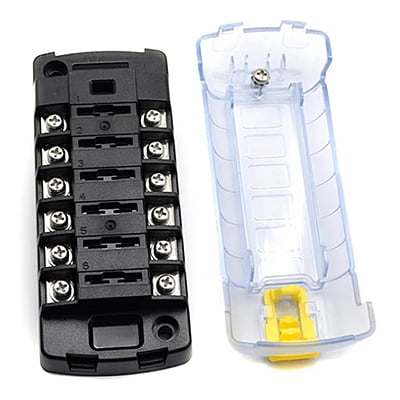

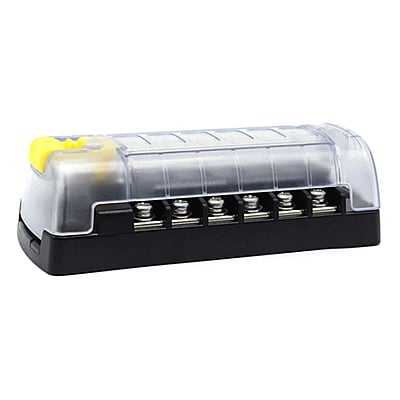

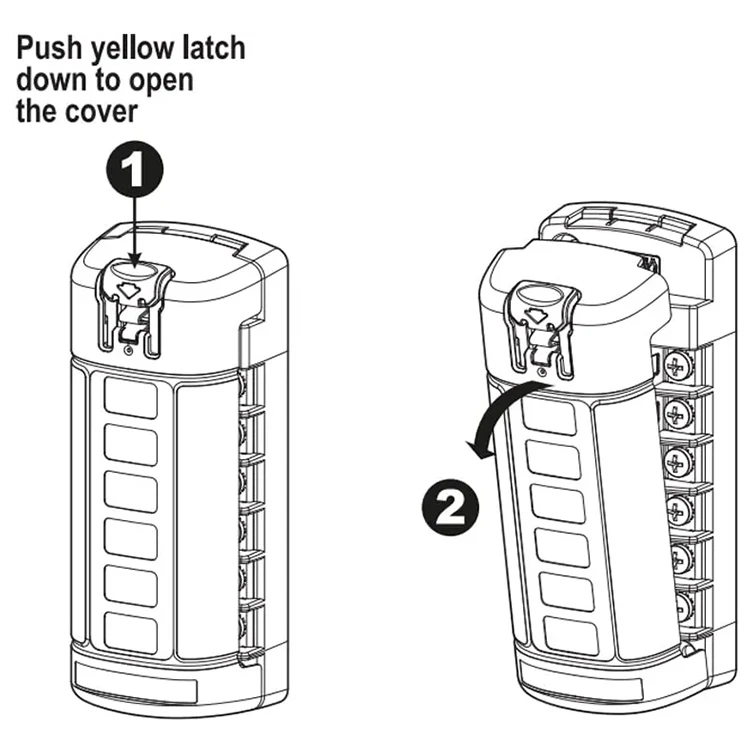

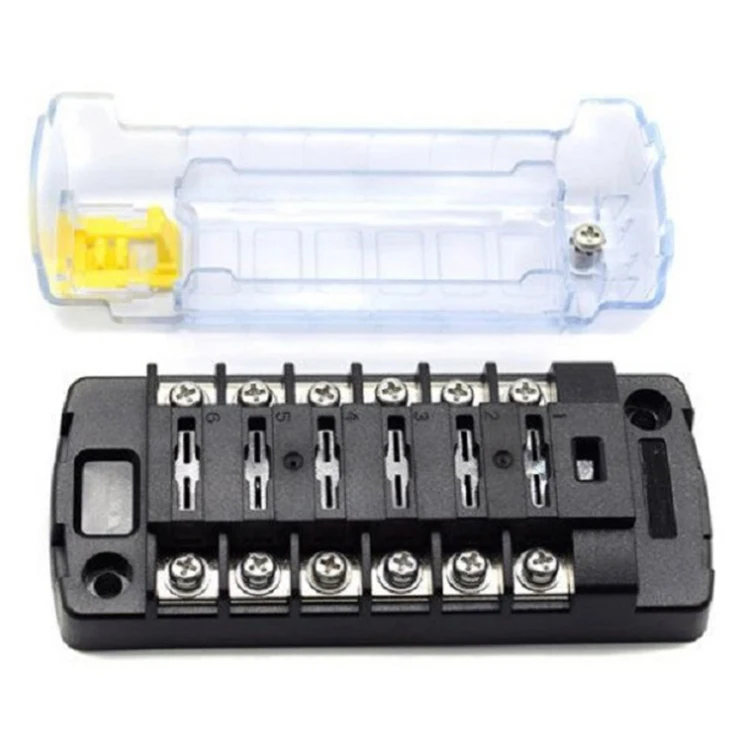

Fuse Block ST Blade 6 Circuit Independent with Cover, , is an independent source fuse block that consolidates branch circuits and eliminates in-line fuses Max Amps: 30A per circuit, 40A per jumped circuit group, Max Volts: 32V DC, Mounting: #8 Screw (M4), Screw Terminal Torque: 18in-lb, Screw terminal type: #8-32 screws with captive star lock washer Corrosion resistant, tin-plated copper fuse clips reduce heat and improve the efficiency of the electrical system Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements and has a push button latch that is easy to open
