BHD14.500
Product Details
Product Details
Product Details
Overview
Products Description

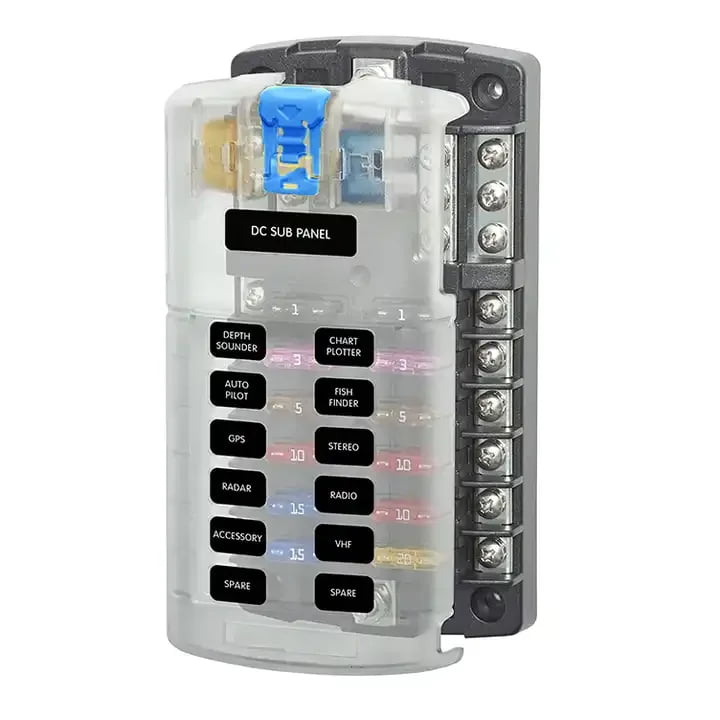

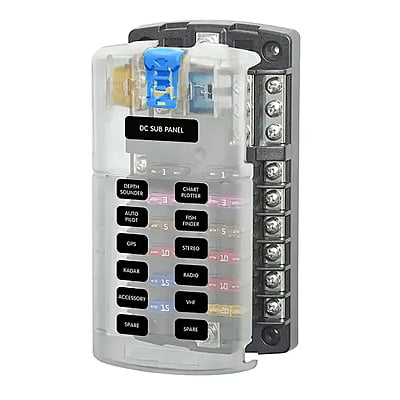

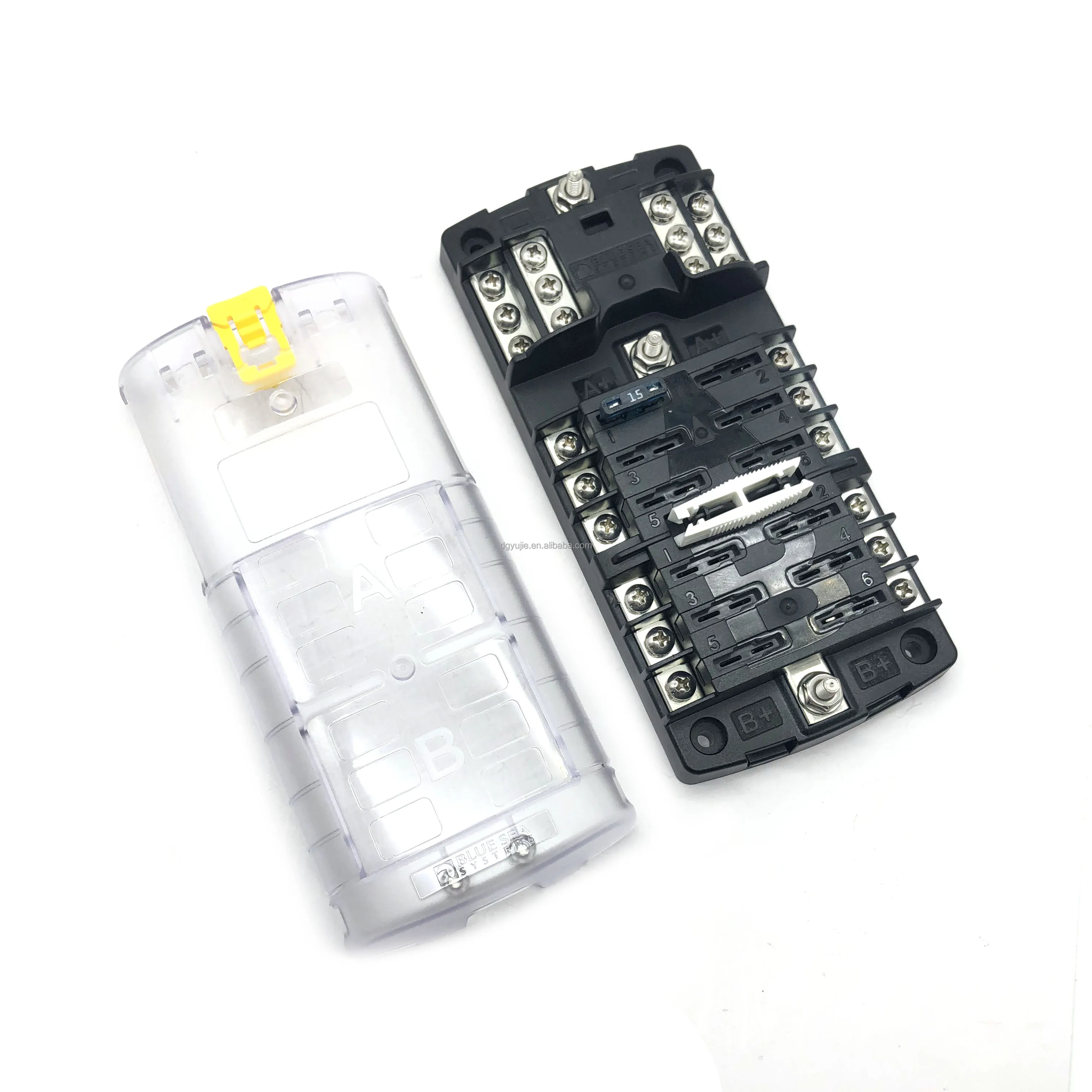

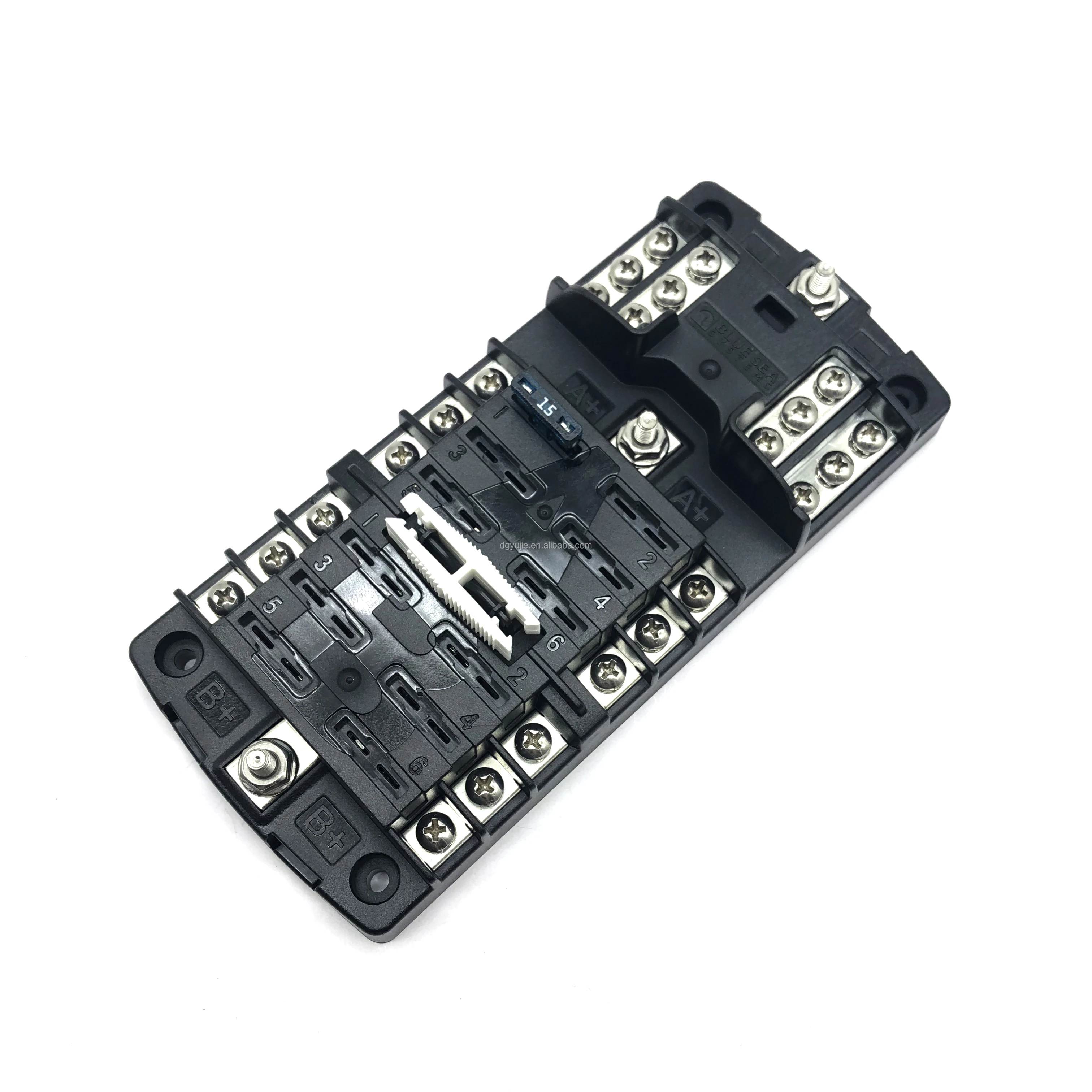

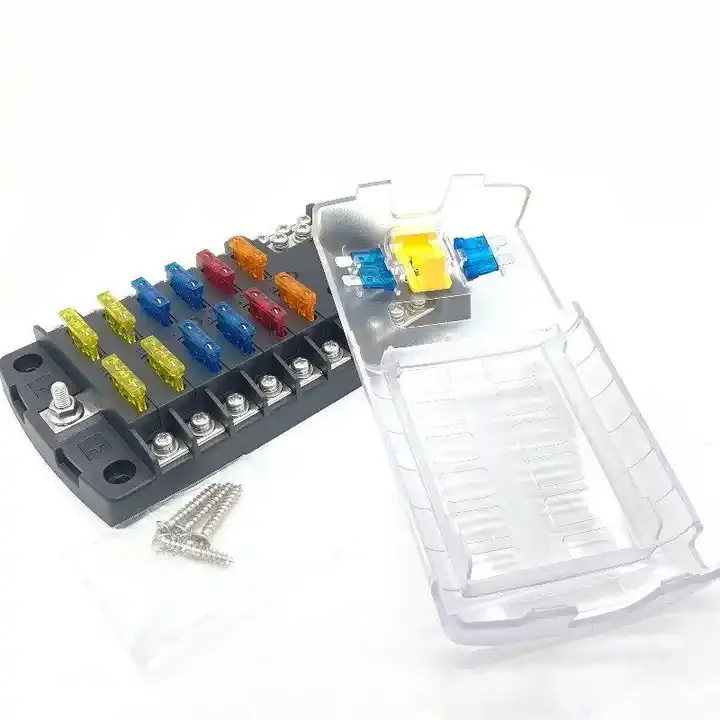

12 Way 12 Circuit Split Fuse Block with Neg Bus Damp-Proof
Split Bus Fuse Block with ground for use when a mix of switched and 24-hour circuits are desired in the same block
* Provides two isolated groups of six ATO®/ATC® circuits
* For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits
* Screw terminals for securing wires accept ring terminals
* One-piece stainless flange nuts ensure safe and secure connections

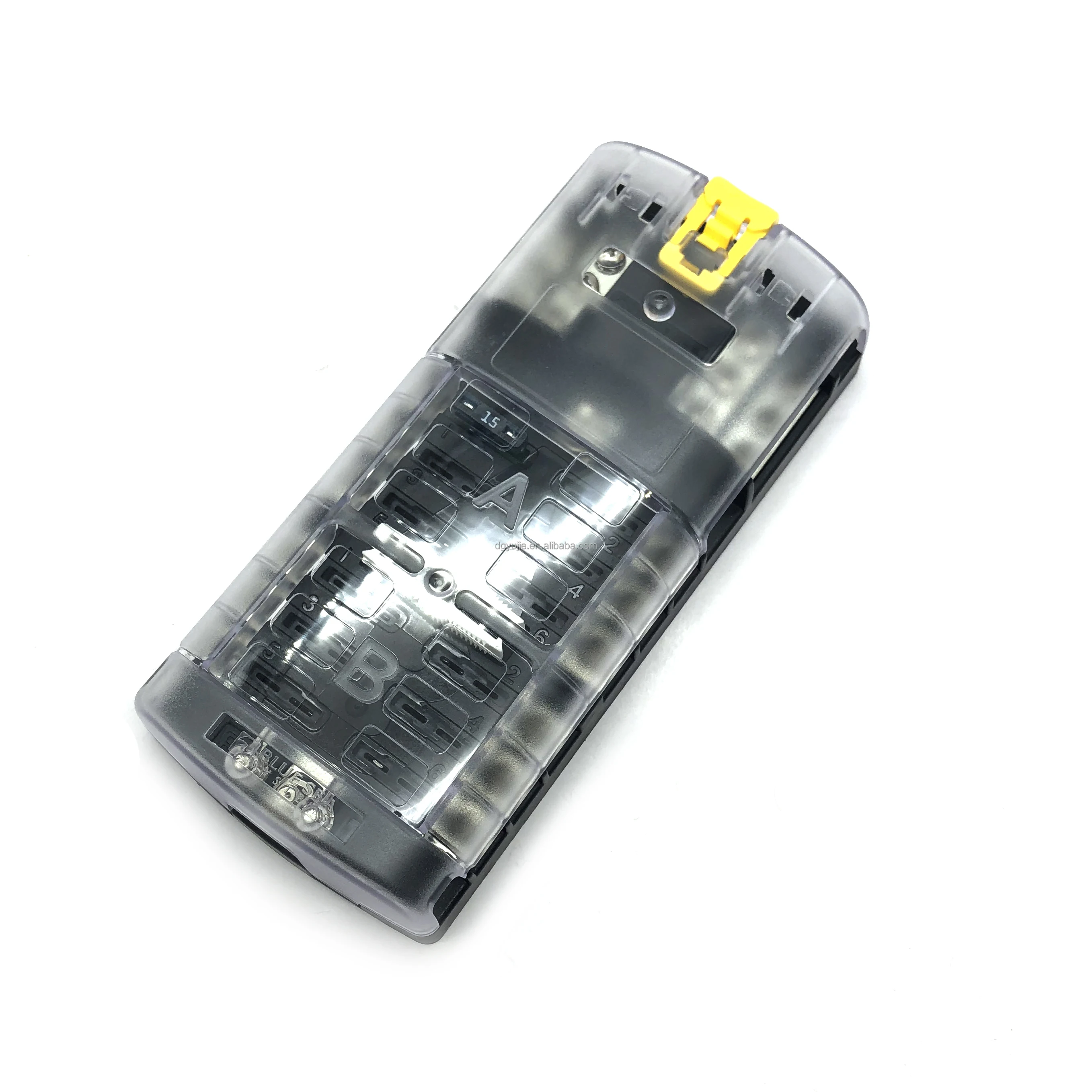

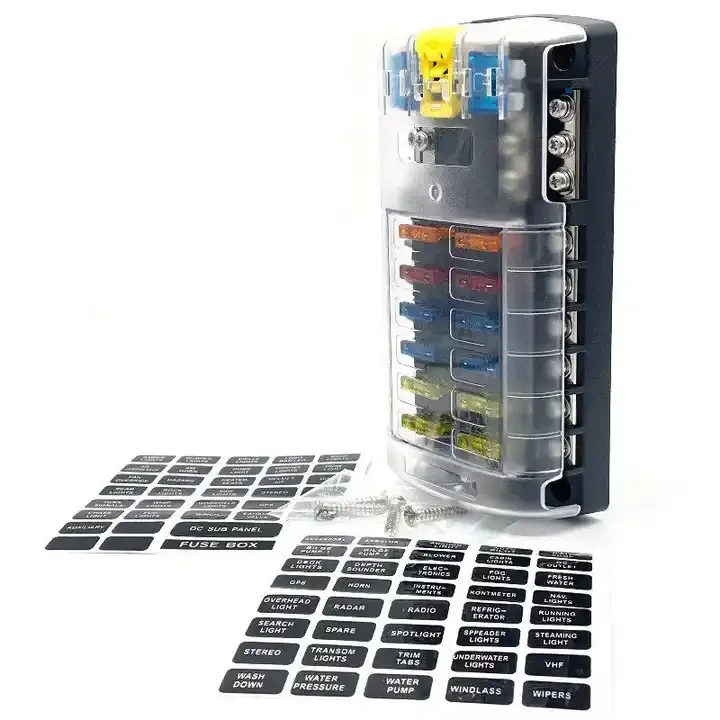

* Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements
* Easy to open, push button latch for easy access to fuses
* Tin-plated copper buses and fuse clips
* Provides two isolated groups of six ATO®/ATC® circuits
* For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits
* Screw terminals for securing wires accept ring terminals
* One-piece stainless flange nuts ensure safe and secure connections
* Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements
* Easy to open, push button latch for easy access to fuses
* Tin-plated copper buses and fuse clips







Specification
Product name | 12 Way 12 Circuit Split Fuse Block with Neg Bus Damp-Proof |
Material | ABS and dustproof cover + Nickel plated copper connection terminal |
Input Voltage | 12V-32V DC |
Input / Output Current | 100A / 30A max. per circuit |
Max Volts | 32V DC |
Mounting Type | #8 (M4) Screw |
Negative bus | #10-32 stud |
Positive bus | #10-32 stud |
Screw terminal type | #8-32 screws with captive star lock washer |
Application | Airplane, subway, bus, ship, tanker, modified car, eco-car, etc |
