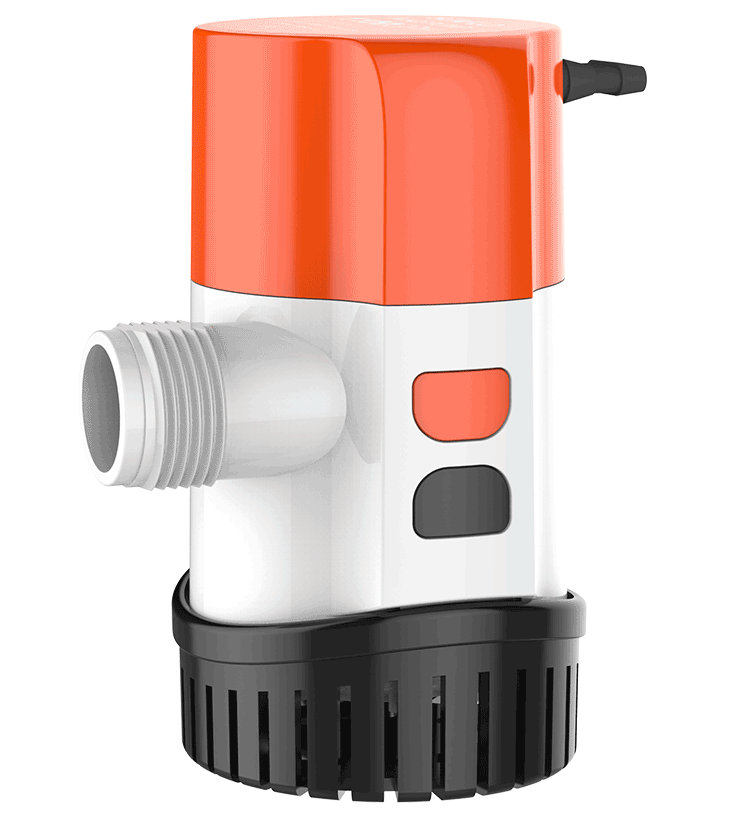

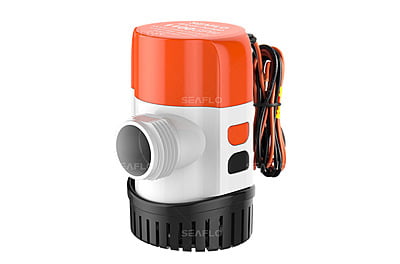

Electronic Sensing Automatic Bilge Pump –New Design 13B SERIES 800GPH

Name: SEAFLO Electronic Sensing Automatic Bilge Pump –New Design 13B SERIES 800GPH
Brand: SEAFLO
SKU: SFBP1-G800-13B
Price: 13.0 BHD
Availability: InStock

SEAFLO latest automatic 600GPH, 800GPH, 1100GPH bilge pumps offer water evacuation without extra float switch needed. SEAFLO electronic sensing series bilge pumps turn the pump impeller every 2-1/2 minutes for approximately 0.5 second. If water is present, the pump will sense resistance and will continue to run until all water is removed. This system is a compact way of constantly sensing for water presence. New innovative split quick-connect joint design removes and installs in seconds! Change pump never been so easy. No need to disconnect base or plumbing when replacing pump, which can meet the needs of most users. Just replace the motor that is all. Include Anti-Airlock protection and exclusive moisture tight seals, marine grade blocked wiring. Our larger impeller design and more robust motor allow us to outperform our competitors. Pumps offer a choice of straight or 90 degree ports to suit your installation.

SEAFLO new fully automatic submersible bilge pumps with new innovative design incorporates the bilge pump and water sensor in a single housing. SEAFLO 14AB bilge pumps provide ultimate pumping performance, which helps keep your bilge clear of nuisance water, building on the genuine SEAFLO design.
The new SEAFLO 14A bilge pumps operate using an internal level sensor. When water reaches 2″ (5cm), the pump will automatically activate, removing water from the bilge. When the water level reaches 3/8″ (0.9cm) the pump will turn off until the water level rises again.
Bilges are not always clean and free from debris. If the level sensor becomes fouled by debris or contaminated water, the pump’s unique back up feature will prevent the pump from entering a run-on condition, protecting the battery while maintaining automatic operation.

FEATURES & BENEFITS

- Available in three different capacities 600, 800, 1100 gallons per hour - Include removable discharge straight fitting

- Removable strainer and impeller area are accessible to clear debris - Stainless-steel motor shaft

- Vented impeller housing to prevent the pump from becoming airlocked - Fully Submersible and ignition protected

- Threaded Discharge — easier installation, easier maintenance - Motor can be sold separately

- Pump and switch are internally wired for easy installation -High efficiency, low amp motor

- Includes check valve to prevent water back flow - Exclusive moisture tight seals

- Bilge water sensor and pump in a common housing - Sealed efficient, long life motors

- Marine grade silicon blocked, tin coated wiring - Quiet operation

- Compact automatic pump-no float switch needed - CE, RoHS, ISO 8846,ISO8849 standards

- Higher Flow — 500 GPH pump with optimized impeller to provide up to 10% more flow at the same amperage

- 1-1/8” 29mm 90o fitting sold separately with 360° rotation function to meet any angle requirement.

- A 3rd wire allows for manual over-ride using SEAFLO switch panel or it can activate an alarm or indicator lamp.

- Modular design easy to disassemble, clean snap lock strainer and replace accessories

- Check for water every 2.5 minutes, Runs for a half second Consumes 0.25 amps per day

- Auto Sense Intelligence — integral water level sensor controls the pump automatically

- New innovative split quick-connect joint design removes and installs in seconds! No need to disconnect base or plumbing when replacing pump, which can meet the needs of most users

DETAILS

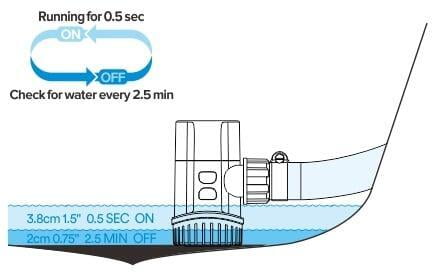

1. Back Up Feature — prevents continuous running if sensor is fouled by debris, pump reverts to 2.5 minute cycle mode
Check for water every 2.5 minutes
Runs for a half second
Consumes 0.25 amps per day

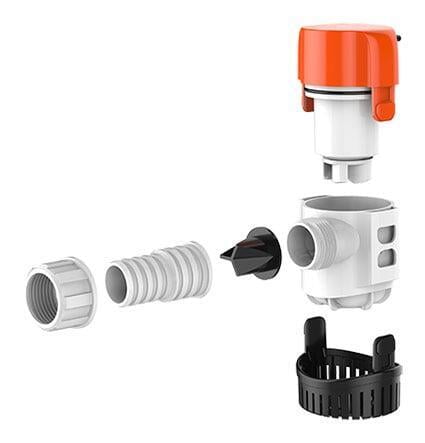

2. New innovative split quick-connect joint design removes and installs in seconds! No need to disconnect base or plumbing when replacing pump, which can meet the needs of most users.

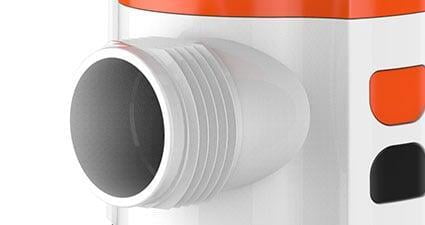

3. Threaded Discharge — easier installation, easier maintenance.

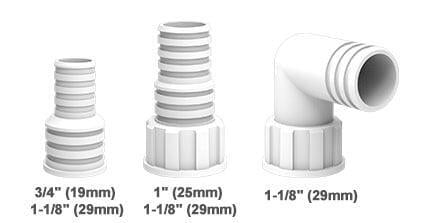

4. Include removable discharge straight and choice angle fittings to suit your installation. Threaded discharge nozzle. (3/4”+1”, 1’’+1-1/8’’ straight fittings and 1-1/8’’ elbow fitting). Multiple ports are available.

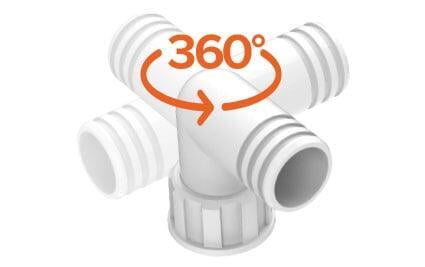

5. 1-1/8” 29mm 90° fitting sold separately with 360° rotation function to meet any angle installation requirement. No check valve with 90° fitting.

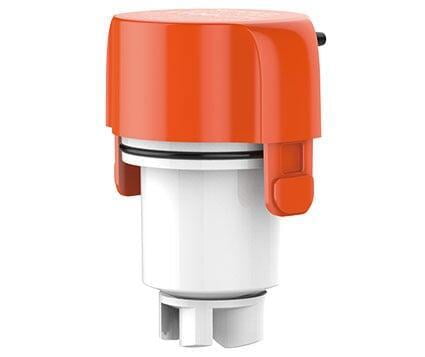

6. Motor can be sold separately.

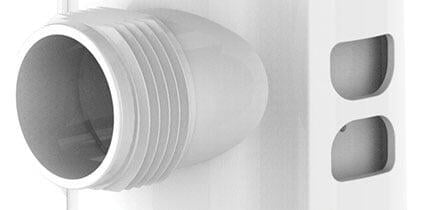

7. Hidden Air Vents in the Body – helps prevent air locking in challenging plumbing installations and helps with the check valve.

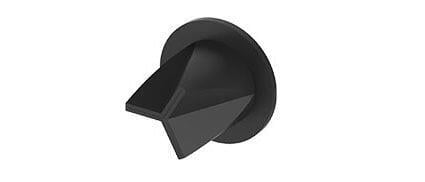

	8. Backflow Prevention – The non-return check valve prevents water left in the discharge from running back, reducing odor, and keeping bilges dryer and cleaner.

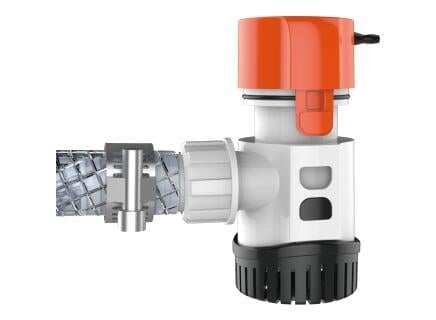

9. Split quick-connect joint design no need to disconnect base or plumbing when replacing pump.

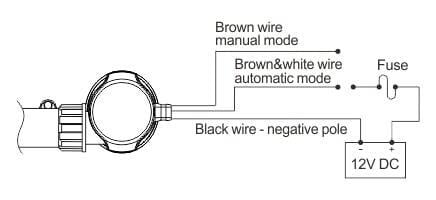

10. Wiring Diagrams

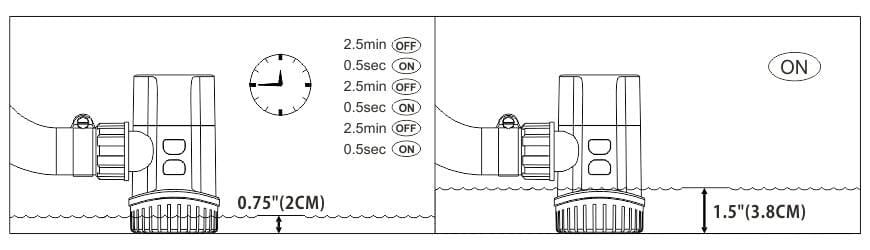

11. 13B model features electronic automatic mode.

Pump automatically turns on every 2.5 minutes. When the current is below 1.25A or above 8A, pump will stop running.

And it will try to start again after 2.5 minutes stopping. When the pump detects that the current at the water level exceeds

1.25A, it will work normally to pump water away.

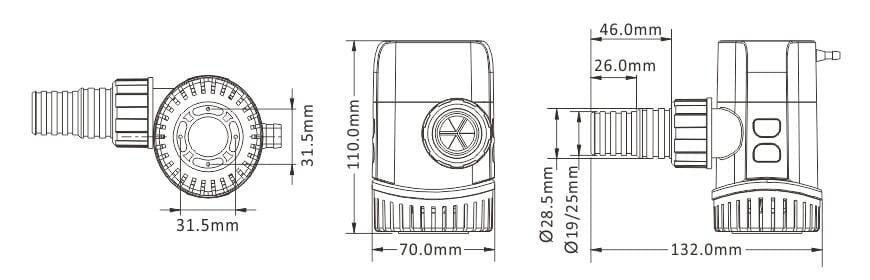

DIMENSIONS

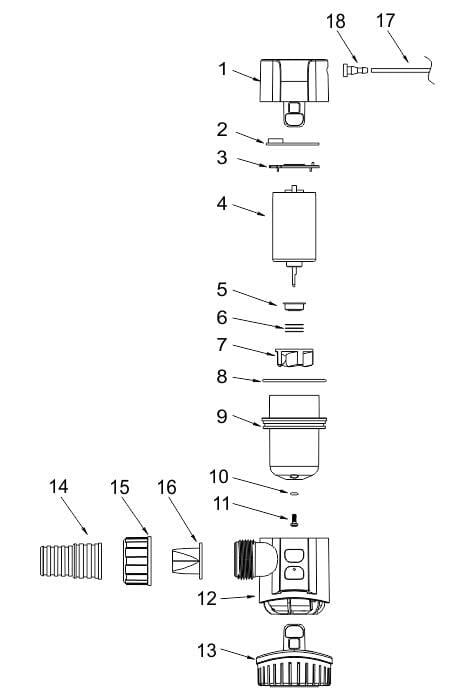

DETAILED COMPOSITION

KEY	Description	Quantity
1	Motor cover	1
2	PCB board	1
3	PCB board bracket	1
4	motor	1
5	Motor protection cap	1
6	Oil seal	3
7	Impeller	1
8	Sealing rubber ring	1
9	Motor cover	1
10	Screw sealing	2
11	Screw M3*8	2
12	Pump housing	1
13	filter	1
14	Pipe joint	1
15	Lock Nut	1
16	Check valve	1
17	wire	3
18	Three-hole line card	1

STANDARD PUMP CONFIGURATIONS

Model	Motor Model	Flow rate	Volts	Current	Head	Wire Lead	Outlet Dia.	N.W./G.W.
SFBP1-G600-13B	SFMA1-G600-13B	600GPH	12V	2.5A	2.5m/7.5'	3' (1 m)	3/4" (19mm) 1-1/8" (29mm)	0.40/0.47kg
