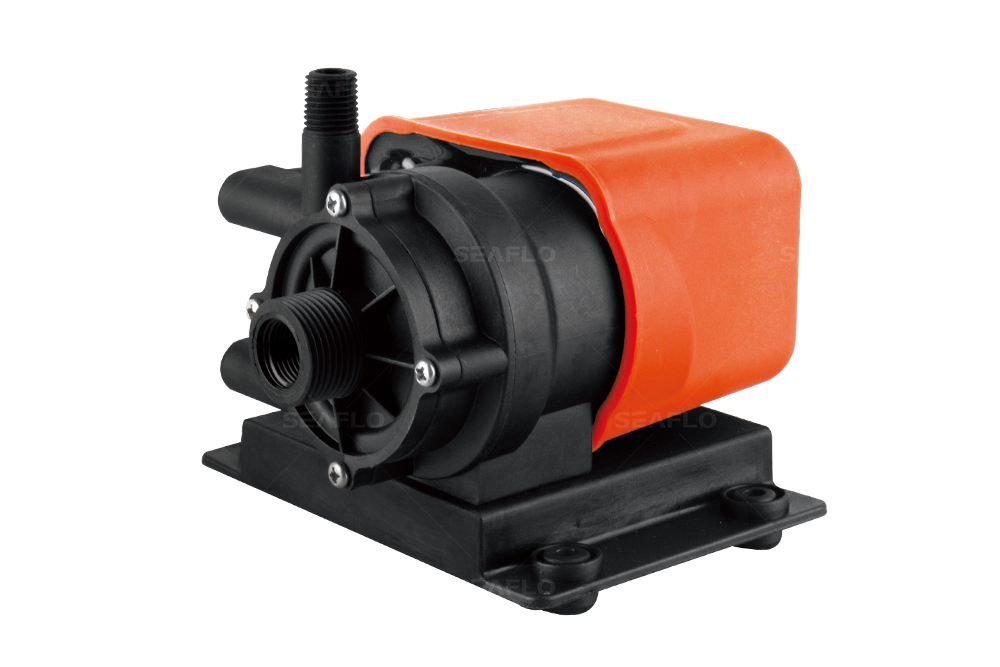

The SEAFLO Magnetic Circulation? pump is a centrifugal magnetic drive pump, eliminating the need for a shaft seal. Pumps are serviceable with a screwdriver. The pump is able to be run fully submerged or in open air for complete moisture protection. It also can pump liquids with a specific gravity greater than water, have a higher viscosity.
Tags:
BHD70.000
Product Details
Product Details
Product Details

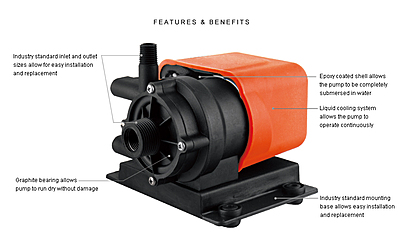

MORE FEATURES & BENEFITS
• For use with AC system up to 12,000 BTU
• More than 10,000 hours lifetime
• 5 GPM seawater circulation pump
• Run dry safe for normal workloads
• Continuous duty
• Replaces any brand marine air conditioning pump
STANDARD PUMP CONFIGURATIONS
| Model | Voltage | Flow Rate | Frequency | Head | Power | Amps Draw |
| SFCPA1-G250-01 | 115 V | 5 GPM | 60 Hz | 13 ft / 5.7 psi | 56 W | 0.99 A |
| 18.5 LPM | 50 Hz | 2.7 m | 58 W | 1.1 A | ||
| SFCPA2-G250-01 | 230 V | 5 GPM | 60 Hz | 13 ft / 5.7 psi | 55 W | 0.50 A |
| 18.5 LPM | 50 Hz | 2.7 m | 55W | 0.56 A |
